Handheld  laser cleaning machine

luchtgekoelde pulslaserreinigingsmachine

luchtgekoelde laserreinigingsmachine is een nieuwe generatie oppervlaktereiniging van hightech-producten.eenvoudig te installeren, te manipuleren en te automatiseren. eenvoudige bediening, kan het oppervlak van het object hars, olie, vlekken verwijderen, vuil, geborduurd troebel, coating, coating, verf.
  • Merk:

    PES LASER
  • Item nr.:

    PES-C100
  • Bestel (MOQ):

    1
  • Betaling:

    30% DEPOSIT,70% BEFORE DELIVERY
  • Productafhank:

    CHINA
  • Scheepvaartpoort:

    SHANGHAI/NINGBO/GUANGZHOU/QINGHAI
  • Doorlooptijd:

    7 day
  • Productgewicht:

    100kG
Nieuwe Producten
  • Overzicht
  • Kenmerken
  • Specificaties
  • Rfq

product item: luchtgekoelde laserreinigingsmachine

dit soort handheld laserreiniger wordt veel toegepast in de matrijzenindustrie, auto-industrie, scheepsbouw, voedselverwerking, rioolwaterzuivering, rubberbanden, petrochemische en andere industrieën.

laser cleaner


technologie geüpgraded

laser cleaning head





- de 4e generatie dual purpose laserkop.

- handbediend en automatisch.

- gemakkelijk vast te houden en te integreren met automatisering.

- eenvoudig te bedienen en heeft verschillende functies.

- focuslens kan rechte lijn, cirkel, spiraal, rechthoek, vierkant, ronde vulling, rechthoekige vulling enz.scannen.Het kan het juiste scanpatroon toevoegen volgens de vraag van de klant.

- lichtgewicht en handig, de laserkop weegt slechts 823 g.

-automatische modus adapterplaat, handmatige/automatische schakeltijd minder dan 5s.





aimple software prestore van verschillende parameter graphics

laser cleaner

1.eenvoudige software, selecteer vooraf opgeslagen parameters direct.

2.prestore allerlei parameter graphics, zes soorten graphics kunnen worden geselecteerd : rechte lijn/spiraal/cirkel/rechthoek/rechthoek flling/cirkel vullen.

3.eenvoudig te gebruiken en te bedienen.

4.eenvoudige interface.

5.12 verschillende modi kunnen snel worden geschakeld en geselecteerd om productie en foutopsporing te vergemakkelijken.

6.de taal kan Engels/Chinees of andere talen zijn (indien nodig).



Laser cleaning machine

gebruik direct op stroom milieuvriendelijk

universele 220v voeding, plug and play de meest milieuvriendelijke industriële reinigingsmethode, draagbaar

hulpstofbehandelingssysteem (optioneel).


de doosdeur kan vrij draaien met 270 ° opening, wat handiger is in gebruik.metalen handgreep aan de onderkant met dubbele handgreep aan de zijkant, gemakkelijk naar beneden te kantelen, dubbele lift / gemakkelijk te dubbele enkele handlift of enkele lift.


toepassingsgevallen:

laser cleaning machine



1.lange levensduur tot 100.000 uur.
2.contactloze reiniging, geen schade aan de onderdelenmatrix.
3.nauwkeurige reiniging, kan een nauwkeurige locatie bereiken, nauwkeurige selectieve reiniging van de grootte.
4.geen chemische reinigingsvloeistof nodig, geen verbruiksartikelen, veilige en milieubescherming.
5.eenvoudige bediening, kracht kan in de hand worden gehouden of met de robot om geautomatiseerde reiniging te bereiken.
6.de reinigingsefficiëntie is erg hoog, bespaar tijd.
7.stabiliteit van het laserreinigingssysteem, onderhoudsvrij.
max gemiddeld vermogen (w) 100 200
output centrale golflengte (nm) 1064±5 1064±5
bundelkwaliteit (m²) ≤1.6
≤1.8
vermogensaanpassingsbereik (%) 10-100 10-100
uitgangsvermogen instabiliteit (%)≤5
≤5
pulsherhalingsfrequentie (khz) 20-400 20-2000
pulslengte (ns) 10/20/30/60/100/200/250/350 optioneel 10/30/60/240 optioneel
maximale pulsenergie (mj)11
vezellengte (m)3 3/5
laserveiligheidsclassificatie44
koelmethode: luchtgekoeld luchtgekoeld

laat een bericht achter
Als U bent geïnteresseerd in onze producten en wilt meer details weten, laat hier een bericht achter, we zullen u zo snel mogelijk antwoorden zoals wij
gerelateerde producten
handheld laser rust removal machine for sale
1000Watt Handheld Continue Wave Heavy-Duty Laser Cleaning Machine
Type Laser Reiniging Machine Main voor Reiniging Roest, Machine Kies Continuous Wave Fiber Laser, het is niet geschikt voor High-Precision producten.
Laser cleaning machine
watergekoelde pulslaserreinigingsmachine
deze laserreinigingsmachine is geschikt voor metalen oppervlakken.de laserstraal is in staat om nauwkeurig en gemakkelijk het gewenste reinigingseffect te bereiken.waarvoor geen chemische reinigingsoplossing of verbruiksartikelen nodig zijn.contactloze reiniging, bescherming van de componentbasis tegen beschadiging.met nauwkeurige reinigingsfunctie kan selectieve reiniging van precieze positie en precieze afmeting worden gerealiseerd.
mini size laser welding machine
1000 watt mini laserlasmachine
Lichtgewicht, draagbaar en eenvoudig te bedienen
intelligent welding
Stand-alone Intelligent Workstation
Utilizing self-developed intelligent welding and vision systems, the workstation employs visual photography, line marking, and laser scanning to precisely identify and calculate the position of weld seams. Based on the scanning results, the actual position of the weld seam is determined; the workstation automatically matches the welding process according to the size of the weld angle, including current, voltage, welding speed, and torch posture. Furthermore, based on welding trajectories and processes, program instructions recognizable by robots are created and transmitted to them for welding.
intelligent welding
Cantilever Nine-axis Intelligent Workstation
Nine Axis Cantilever Intelligent Workstation is mainly used for the welding production of intermediate assembly structures of ships and bridges, as well as workpieces of high mechanical equipment types. The Nine Axis Cantilever Workstation is compatible with the adaptability of ground rail, seven axis cantilever, and eight axis cantilever workstations. The system deeply integrates welding processes, accurately locates component welds through a visual system, and automatically generates welding programs and executes welding based on the obtained weld coordinate information through the integrated fabric welding expert library. For flat angle welds, vertical angle welds, and multi-layer and multi pass welds with arbitrary placement of workpieces, precise and fast welding can be achieved without programming, teaching, and graphic import. The workstation has auxiliary functions such as arc tracking, automatic gun cleaning, and long-term continuous welding.
robot welding
Cantilever seven-axis intelligent workstation
Seven axis cantilever intelligent workstation is mainly used for welding production of steel structure roof beams, H-shaped steel beams and columns, overhead beams, brackets and other types of workpieces. The seven axis cantilever workstation is compatible with the adaptability of the ground rail workstation and improves the adaptability in the width direction. The system deeply integrates welding processes, accurately locates component welds through a visual system, and automatically generates welding programs and executes welding based on the obtained weld coordinate information integrated with a fabric welding expert library. For flat angle welds, vertical angle welds, and multi-layer and multi pass welds with arbitrary placement of workpieces, precise and fast welding can be achieved without programming, teaching, and graphic import. The workstation has auxiliary functions such as arc tracking, automatic gun cleaning, and long-term continuous welding.
#lasercuttingmachine#lasercutter
3000W Fiber laser cutting machine
Laser cutting machine is an advanced tool that uses high-power laser beam to cut various materials. Its working principle is to focus the high-energy laser beam on the surface of the material, thereby locally heating and melting the material, and using auxiliary gas (such as oxygen, nitrogen or compressed air) to blow away the molten material to achieve cutting. Brand: PES LASER Item NO.: PES-T3000 Order(MOQ): 1 Payment: 30% DEPOSIT,70% BEFORE DELIVERY Product Origin: CHINA Shipping Port: SHANGHAI/NINGBO/GUANGZHOU/QINGHAI Lead Time: 35 day Product Weight: 3000KG

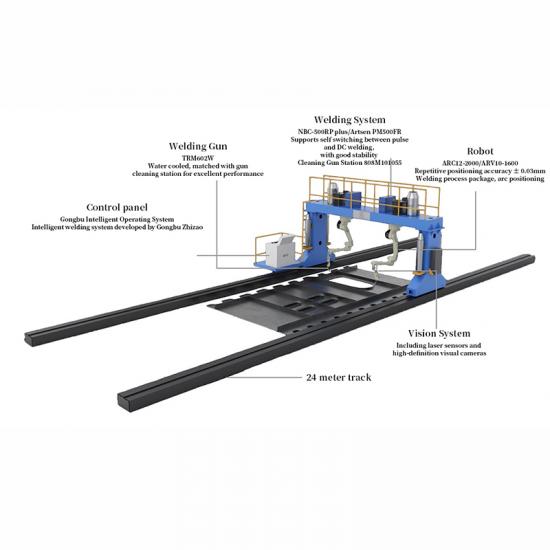

 Gantry Seven-axis Intelligent Workstation
